The transfer box consists of a 500 liter polyethylene tank and SHREDD sludge pump.
The polyethylene tank is equipped with a plastic lid for easy access to the pump for inspection.
The SHREDD sludge pump is equipped with a ZG35 steel impeller and a ZG40Cr steel cutting blade.
It is designed for pumping domestic and industrial sewage and also with fiber.
A screw connection for quick and easy maintenance of the pump is installed on the discharge connection pipe.
The box has a 10 m connecting cable H07 RNF, the inlet pipe diameter is 110 mm.
|Power input:||1100 W|
|Q max:||18000 l/h|
|Head hight:||16 m|
|Cable length:||10 m|

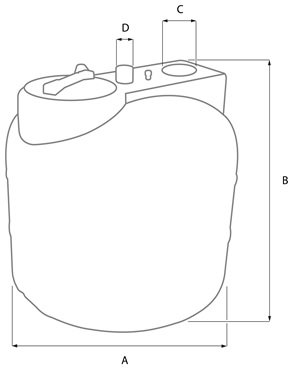

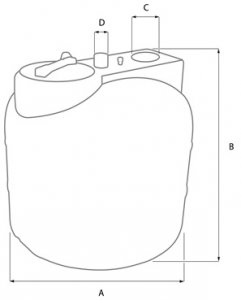

|A dimensions:||970 mm|
|B dimensions:||880 mm|
|C dimensions:||110 mm|
|D dimensions:||2" mm|
|Max. temperature:||40 °C|
|Tank volume:||500 l|
